This Anesok® 5 inch IPS Video Endoscope is a great tool for auto maintenance, home inspection, electrical installs, HVAC fixes and household DIY. Two complete cameras are built into the end of the flexible probe. One button toggles between the front-view camera and the side-view camera at any time in a narrow area to get a different field of view. No extra mirror is needed.This is the biggest video endoscope screen at 5 inches with a color IPS screen and 1280x720 HD resolution image. IPS technology makes this screen extra bright for outdoor use.

Accessories list

(Notice:3.9mm don’t have magnet, hook, mirror and protective cap)

(Notice:Dual lens and triple lens don’t have side mirror)

Endoscope*1

Manual*1

Accessory cylinder*1

Magnet*1

Hook*1

Mirror*1

Protective cap*1

Micro USB and USB charging cable*1

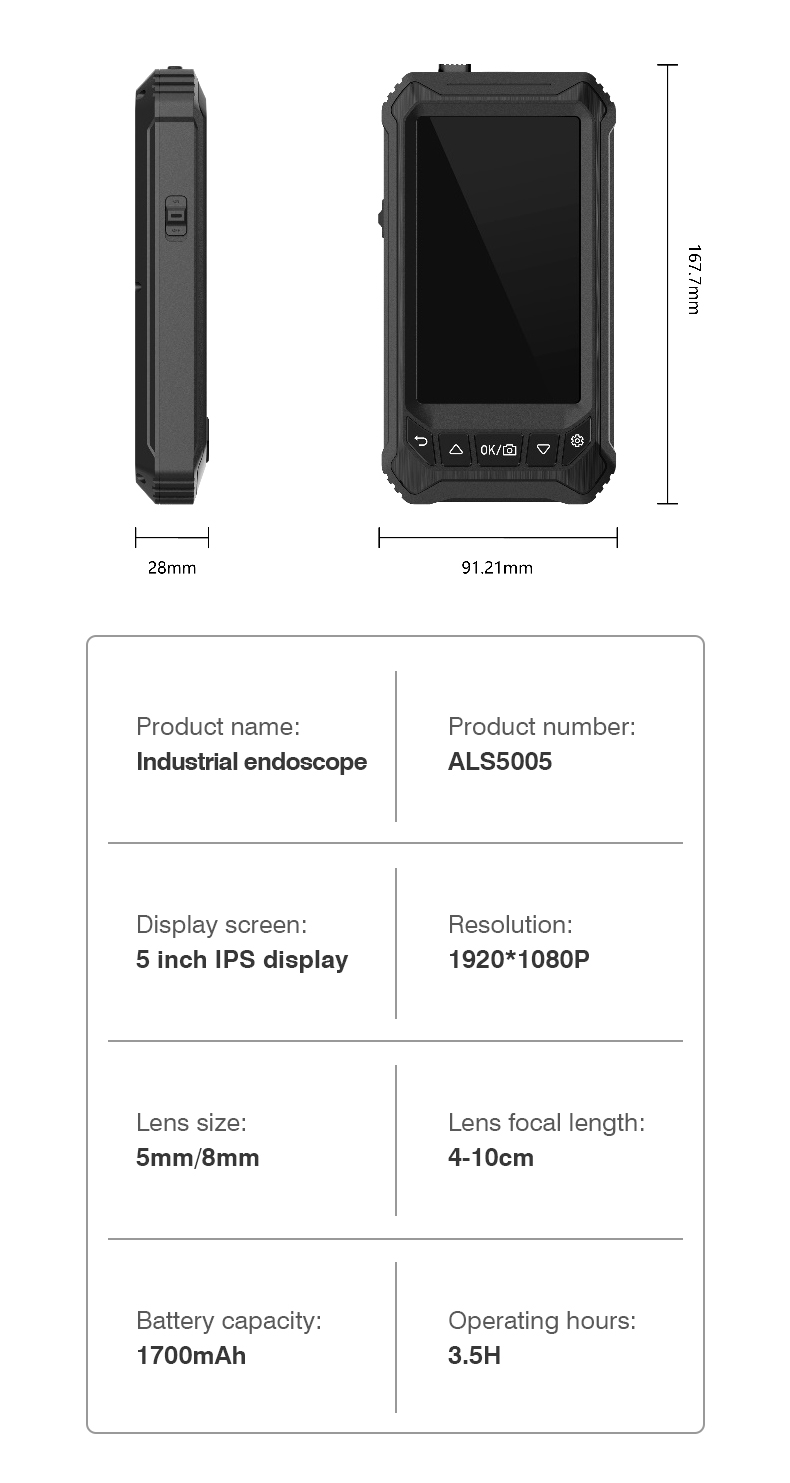

Anesok® 5 inch IPS Video Endoscope Specification

Item name	5 inch IPS Video Endoscope
Model name	5005-B
Sensor	CMOS, 1.0MP
Camera lighting	6 LEDs,6+1 LEDs
Lens type	Single lens/Dual Lens
Probe diameter	3.9/5.5/8mm
Cable type	Semi Rigid Cable
Cable length	1m/3m/5m/10m/15m/OEM cable length
Screen size	5 Inch IPS Screen
Screen resolution	960*480P
Image resolution and format	1920*1080(JPEG)
Video resolution and format	1280*720P(AVI)
Frame rate	20 fps
Working voltage	4.2V
White balance	Automatic
Exposure	Automatic
Depth of field	Front camera:2-10cm Side camera:2-5cm
Field of vision	70°
Bending radius	min. 30 mm
Camera waterproof	IP67
Product material	ABS+PC
Operating temperature	-10 to +50 °C
Operating humidity	<85 % RH
Storage temperature	-10 to +50 °C
Storage humidity	<85 % RH
Data storage	TF card (size: max. 32 GB,speed class: min. 10)
Battery capacity	18650 2000mAh Li-battery/3hours
Connector type	Micro-USB
Color	Black
Certification	EMC/RoHS/MSDS/UN38.3
Warranty	1 Year
Package box size	18146.5cm
Pcs / Master CTN/CTN size	27pcs/CTN; 56.54224.5cm

Anesok® 5 inch IPS Waterproof Video Endoscope

Feature:

(1) Dual lens/Single lens

(2) 5inch IPS scren

(3) IP67 waterproof

(4) >=6 Adjustable LEDs on the camera head

(5) Support 32GB memory card

ANESOK 5005 IPS screen endoscope camera
