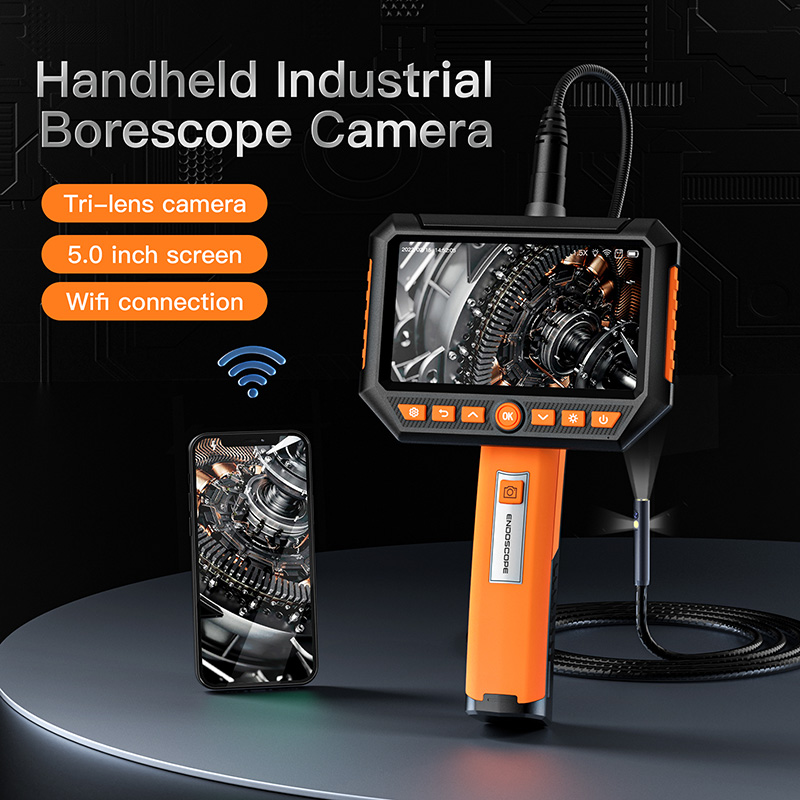

This Anesok® industrial endoscope is the latest invention of high-quality endoscope IP67 and comes with 1 year warranty. The Anesok® 5 inch OLED Triple Lens Video Endoscope is a high-performance dual-system industrial endoscope developed by Yipincheng Group with a high-definition color display. The screen and the mobile phone are synchronously displayed online. It is widely used in the maintenance of automobile engines, aero engine, underground mine tunnels, and narrow spaces that cannot be touched and reached by human eyes. Comes with storage, support photo and video functions, and supports TF card expansion (up to 128G).
This product is equipped with a high-definition camera and a flashlight with a small diameter of LED auxiliary lighting. The camera adopts a high-sensitivity chip, which can be used normally even in a dark working environment.

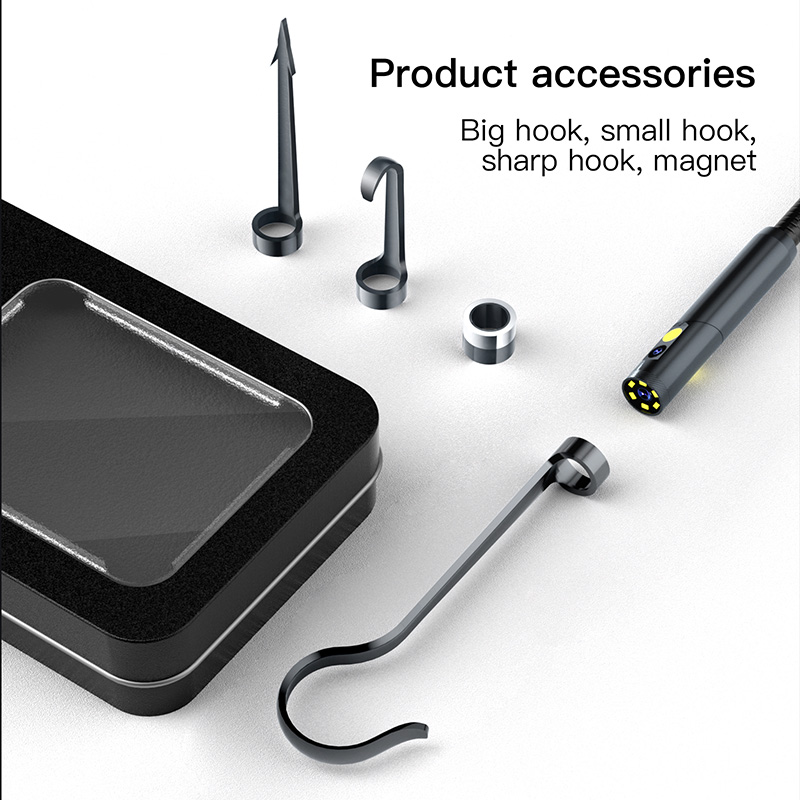

Accessories list
(Notice:3.9mm don’t have magnet, hook, mirror and protective cap)
(Notice: 5.5mm only have magnet,small hook,protective cap)
(Notice:Dual lens and triple lens don’t have side mirror)
Endoscope*1
Manual*1
Accessory cylinder or box*1
Magnet*1
Large Hook*1
Small Hook*1
Sharp Hook*1
Mirror*1
Protective cap*1
USB and TYPE-C charging cable*1
Anesok® 5 inch OLED Triple Lens Video Endoscope Specification Item name 5 inch OLED Triple Lens Video Endoscope Model name G52 Sensor CMOS, 2.0 MP Camera lighting 6 LEDs,6+1 LEDs, 6+1+1 LEDs Lens type Single lens/Dual Lens/Triple lens Probe diameter 3.9/5.5/8mm/12mm Cable type Snake Tube/Semi Rigid Cable Cable length 1m/3m/5m/10m/15m/20m/ OEM cable length Screen size 5 Inch OLED Screen Screen resolution 1280*720P Image resolution and format 1920*1080(JPEG) Video resolution and format 1920*1080(MP4) Working frequency 2.4Ghz Frame rate 20 fps Working voltage 4.2V White balance Automatic Exposure Automatic Depth of field Front camera:2-10cm Side camera 1:2-5cm Side camera 2: 2-5cm Field of vision 70-78° Bending radius min. 30 mm Camera waterproof IP67 Product material ABS+PC Operating temperature -10 to +50 °C Operating humidity <85 % RH Storage temperature -10 to +50 °C Storage humidity <85 % RH Data storage TF card (size: max. 128 GB,speed class: min. 10) Battery capacity 18650 4400mAh Li-battery/6hours Connector type Type-C Color Orange+black Certification EMC/CE-RED/RoHS/FCC/MSDS/UN38.3 Zoom 1.0-1.5-2.0X Support system Ios8.0+/android6.0+ APP Anesok Warranty 1 Year Package box size 31.5*29*11cm Pcs / Master CTN/CTN size 10pcs/CTN; 59.5*59*33cm Anesok® 5 inch OLED Triple Lens Video Endoscope Feature: (1) Triple lens/Dual lens/Single lens (2) 3.9mm/5.5mm/8mm/11.2mm camera size (3) 5inch OLED scren (4) IP67 waterproof (5) >=6 Adjustable LEDs on the camera head (6) Flash light on the top of monitor (7) Dual-system support wifi connection (8) Support 128GB memory card (9) Type-C fast data transfer (10) Picture zoom and still and sharing (11) Video playback fast forward and backward (12) 4400mah and 6hours use life

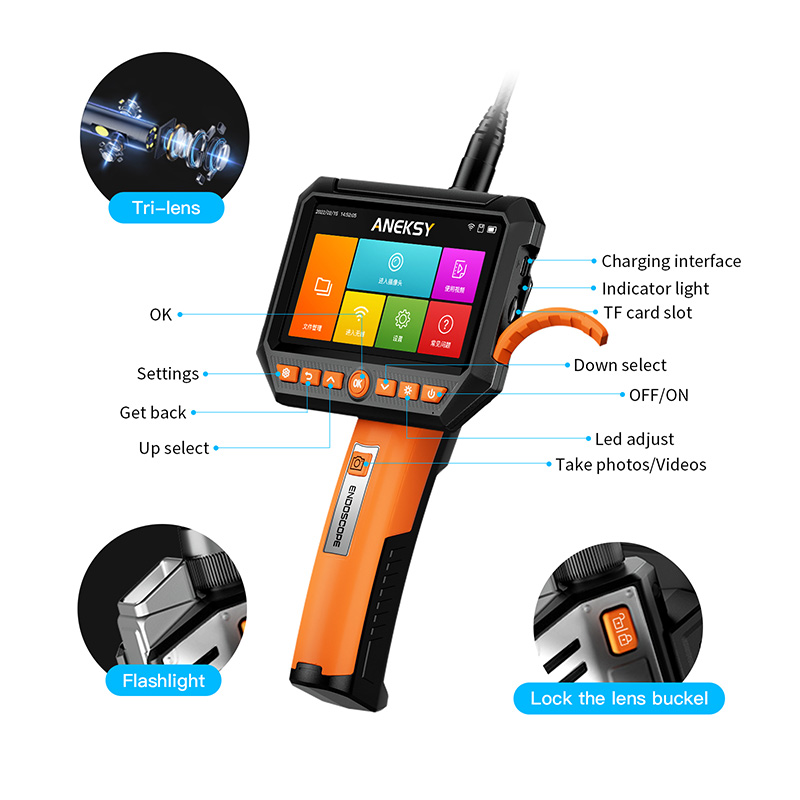

1. 5-inch OLED high-definition display, wide viewing angle, strong contrast, clear picture quality;
2. 2MP HD 1080P high-definition pixels, with dual lens, triple-lens, fully restore the real picture;
3. With camera and video function, 4400mah large battery capacity, 6 hours of use;
4. The newly upgraded dual system, supports WiFi connection; the device and mobile phone can be operated and many people can watch the screen at the same time. Mobile APP can quickly download pictures and videos for sharing. It can also output test reports and pictures;
5. Equipped with high-quality 1/3/5m snake tube and 10m hard cable, with high-quality lenses, the lens will not fall off.
6. 128G large running memory, the device comes with 2G memory, can also be used without memory card
