ANESOK 112B 4'3inch IPS endoscope

PRODUCTS

ANESOK 112B 4'3inch IPS endoscope

Product Description

Anesok® 4.3 inch IPS Industrial Endoscope Camera Specification

Item name	4.3 inch IPS Industrial Endoscope Camera
Model name	112-B
Sensor	CMOS, 1.0MP
Camera lighting	6 LEDs,6+1 LEDs
Lens type	Single lens/Dual Lens
Probe diameter	3.9mm/5.5mm/8mm
Cable type	Snake Tube/Semi Rigid Cable
Cable length	1/m/3m/5m/10m

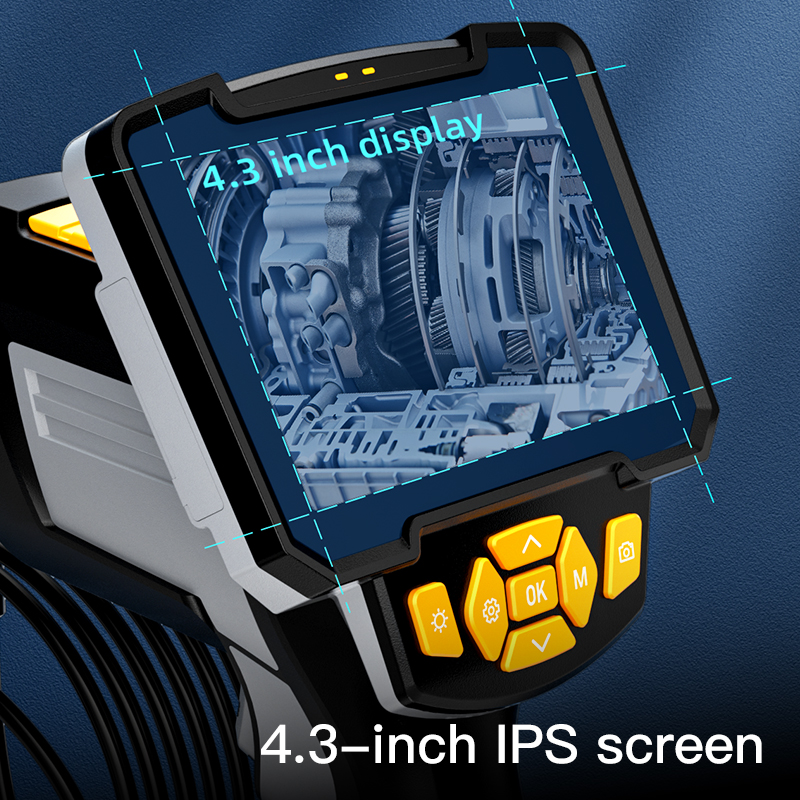

Screen size	4.3inch IPS Screen
Screen resolution	480*272P
Image resolution and format	1920*1080(JPEG)
Video resolution and format	640*480P(AVI)
Frame rate	20 fps
Working voltage	4.2V
White balance	Automatic
Exposure	Automatic
Depth of field	Front camera:2-10cm Side camera:2-5cm
Field of vision	70°
Bending radius	min. 30 mm
Camera waterproof	IP67
Product material	ABS+PC
Operating temperature	-10 to +50 °C
Operating humidity	<85 % RH
Storage temperature	-10 to +50 °C
Storage humidity	<85 % RH
Data storage	TF card (size: max. 64 GB,speed class: min. 10)
Battery capacity	18650 2000mAh Li-battery/3hours
Connector type	Micro USB
Color	Black+orange
Certification	EMC/RoHS/MSDS/UN38.3
Zoom	1.0-1.5-2.0X
Warranty	1 Year
Package box size	31.52111cm
Pcs / Master CTN/CTN size	10pcs/CTN; 59.55933cm

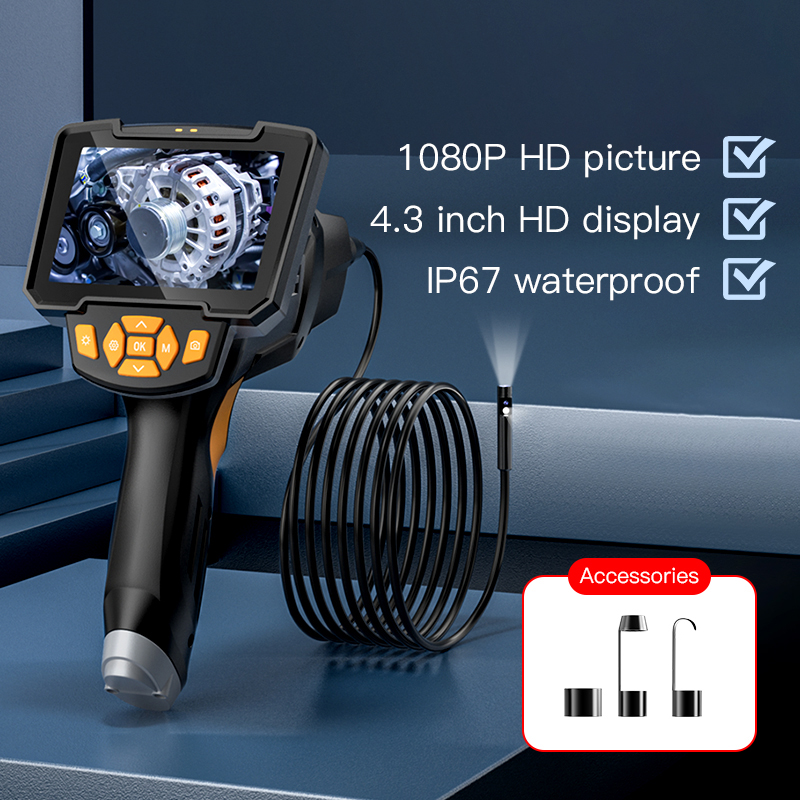

Anesok® 4.3 inch IPS Industrial Endoscope Camera

Feature:

(1) Dual lens

(2) 4.3inch IPS scren

(3) IP67 waterproof

(4) 6 Adjustable LEDs on the camera head

(5) Support 64GB memory card

(6) Rechargeable Battery

(7) Portable case

Specifications
